Move File

<iframe width="560" height="315" src="https://www.youtube.com/embed/h6O2muPq6xA" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

The action Move file, enables you to move a file from one folder to another, or from one FTP server to another.

FTP connection

For our example we used Rebex.

Step 1:  Go to the Credentials Manager section and click Add New.

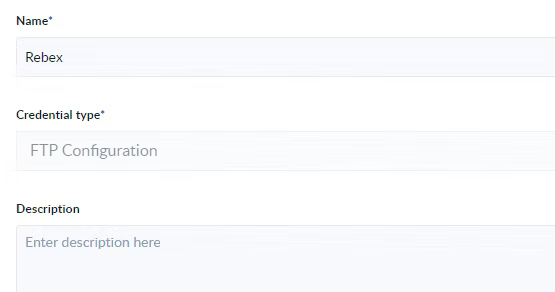

Step 2:  Give your credential a Name* and Description (optional) and click Next step.

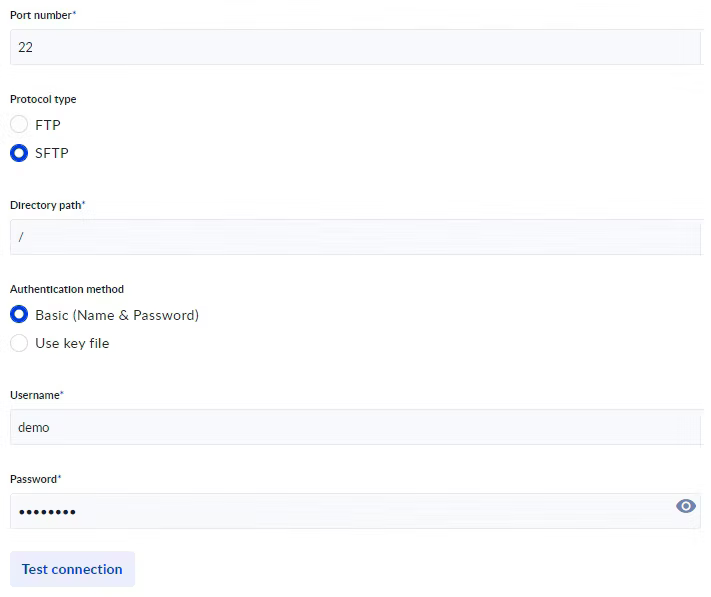

Step 3:  Configure the FTP / sFTP connection as needed:

• Port number* - the port number used by the server.
• Protocol type - the protocol used depending on the encryption.
• Directory path - the entry point of the server.
• Authentication method - here you have the option to use a basic username and password authentication or a user key authentication.



Step 4:  Click Test connection and if successful click Save.

Create the process

Step 1:  From the Process Designer section select Create new.

Step 2:  Give you process a name.

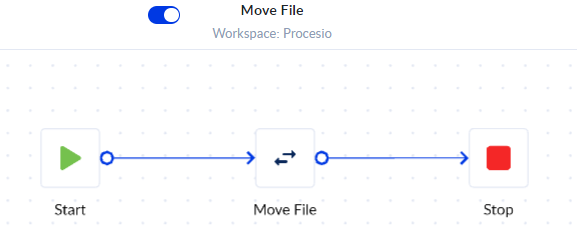

Step 3:  Drag the action Move File on the canvas and link the action inside you process.



Step 4: Create the <%result%> Boolean variable of type output.

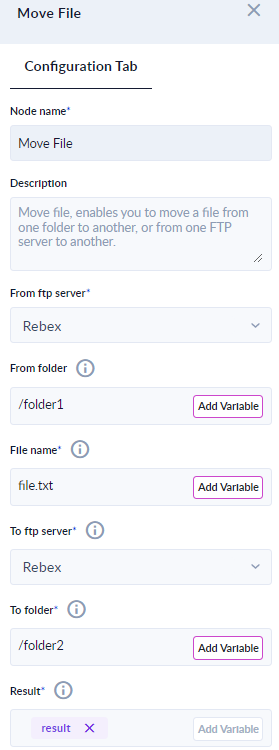

Step 5:  Click the Move File action to access its configurations.

• Node name* - gives you the option to change the actions name.
• From FTP server* - here we will select the connection created in the previous section.
• From Folder - folder path to the file.
• File name - the name of the file that will be moved.
• To FTP server* - here we will select the connection to the server we wish to move the file to.
• To Folder - new folder path to the file.
• Result* - here we will add the variable created at Step 4.



Step 6:  Save, Validate and Run the process.

Step 7:  Click Check Instance.
