Acroform Insert Image
Places an image, such as a signature or a stamp, where a named form field sits in a PDF.
The Acroform Insert Image action puts an image into a PDF at the place of a form field (an AcroForm field). Prepare the PDF once with an empty field where the signature, stamp or logo should go; the action then fills that spot with the image you give it.
Add the action

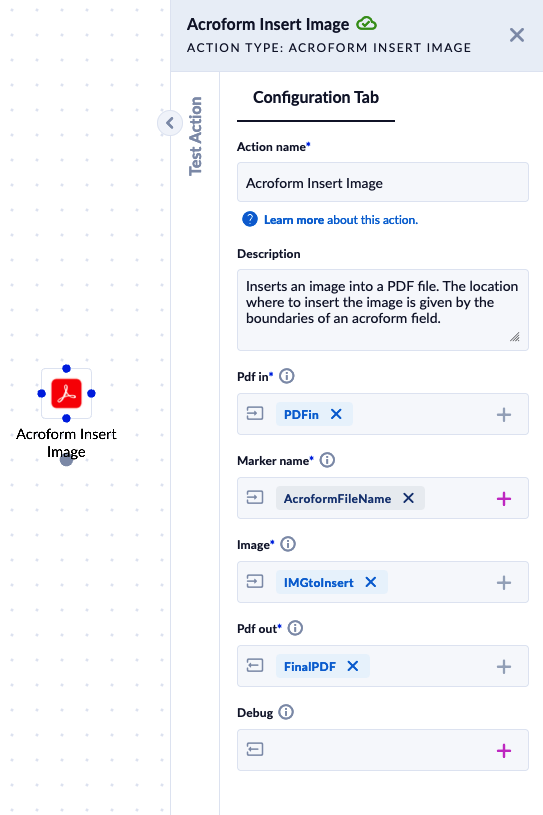

In the Process Designer toolbox, open PDF and pick Acroform Insert Image (or type Acroform in the search box).
Inputs and outputs
| Field | Direction | Type | Required | What to put / what you get |
|---|---|---|---|---|
| Pdf In | Input | File | Yes | The PDF that contains the form field. |
| Marker Name | Input | Text | Yes | The name of the form field that marks where the image goes, for example signature. |
| Image | Input | File | Yes | The image: .jpg, .jpeg, .png or .gif. |
| Pdf Out | Output | File | Yes | The PDF with the image in place. It keeps the input file's name. |
| Debug | Output | JSON | No | What happened to the field: {"Key": โฆ, "State": โฆ}. |
Example
Pdf In form.pdf (one text field named signature), Image stamp.png:
| Marker Name | Debug |
|---|---|
signature | {"Key":"signature","State":"Found on page 1 and updated successfully."} |
nothere | {"Key":"nothere","State":"Not found in PDF."} |
Good to know
- The image is scaled to fit inside the field's box, keeping its proportions, and centred in it. The field itself is removed from the page.
- If the field appears on several pages, the image is placed on each of them, and Debug lists the pages.
- A field name that does not exist does not fail the step: Pdf Out is returned without the image. Check Debug (
Not found in PDF.) if the image must be there. - Other image types fail the step with
Input error: Image extension should be one of '.jpg', '.png', '.gif' or '.jpeg' ! - When you insert several images into the same PDF with consecutive actions, chain them starting with the highest-numbered marker, for example
supplier.signature.3, thensupplier.signature.2, thensupplier.signature.1.
