Insert Sheet
Adds a new, empty sheet to an existing Excel workbook.
Insert Sheet adds a new, empty sheet at the end of a workbook. Use it to give a report one sheet per month, per customer or per section.
Add the action

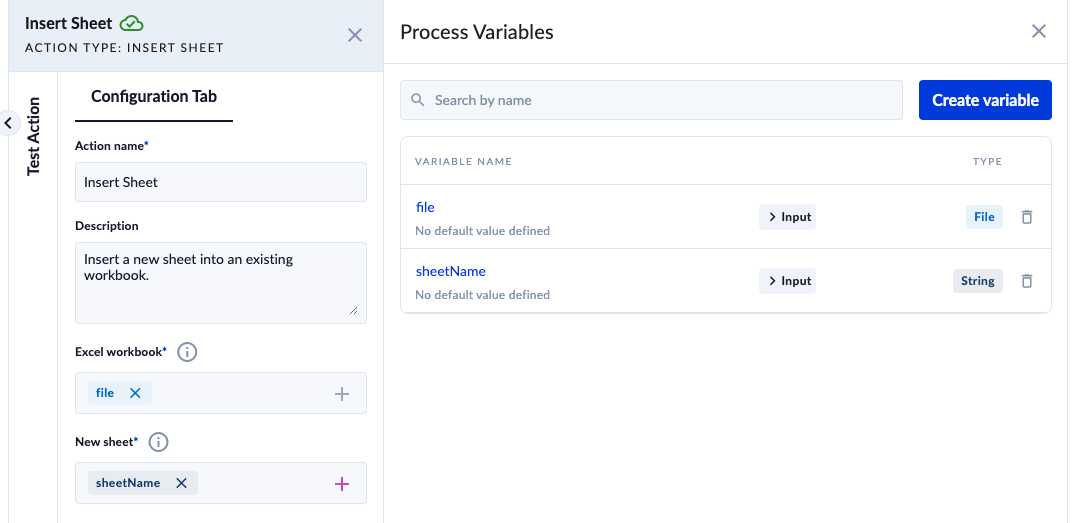

In the Process Designer toolbox, open Excel and pick Insert Sheet (or type Insert Sheet in the search box).
Inputs and outputs
| Field | Direction | Type | Required | What to put / what you get |
|---|---|---|---|---|
| Excel workbook | Input and output | File | Yes | The workbook to change. Pick a File variable: after the step it holds the changed workbook. |
| New sheet | Input | Text | Yes | The name of the sheet to add. |
Example
| Excel workbook | New sheet | Result |
|---|---|---|
orders.xlsx with Orders and Empty | Summary | The workbook now has Orders, Empty and Summary |
| the same workbook | Orders | The step fails: "Excel error: A sheet named 'Orders' already exists in the current workbook." |
Good to know
- Excel workbook is both the input and the output: the same variable carries the changed file to the next steps. The file keeps its name.
- Only
.xlsxand.xlsmfiles are accepted. - When the step fails, the variable keeps the original, unchanged workbook.
