Integrations

OAuth2 - Google Sheets

15min

The Google Sheets credential relies on the OAuth2 protocol. OAuth2 is an industry-standard protocol for authorization. It allows a client to easily authenticate and authorize access to resources.

Β How to get Google OAuth2 credentials

You will first need to go to theΒ Google Cloud console. From there, you will need to go through the following steps:

Select or Create a project in Google Cloud Console

  1. If you don’t have a Google project yet, or if you need to create a new project dedicated to your PROCESIO usage, you will need to create such a project and fill in the required information.
Document image
ο»Ώ

Enable the Google Sheets API in your project

Note that if the Google Sheets API is already enabled in your project, it will appear listed in your dashboard.

2. If you have not enabled the Google Sheets API in your project yet, click on the button β€œEnable APIs and services” > Search for the Google Sheets API and select it.

Document image
ο»Ώ

3. Click Enable.

Document image
ο»Ώ

Create credentials

4. Click β€œCreate Credentials” to create a new credential for your Google Sheets API.

Document image
ο»Ώ

5. SelectΒ  β€œUser data” and click Next.

Document image
ο»Ώ

6. Add a name, an email for support and developer contact information then save and continue.

Document image
ο»Ώ

7. In the Scopes section click Add or remove scopes and select the Google Sheets API scopes you need, then click Update.

Document image
ο»Ώ

8. After you added the Scopes click Save and Continue.

9. In the OAuth Client ID select Web application and add a name for the application. After selecting Web application as application type, the section will expand displaying Authorized redirect URIs.

10. Go in PROCESIO and Create an OAuth 2 Credential.

11. Copy the OAuth Redirect URL (Automatically generated by PROCESIO when creating the Credential).

Document image
ο»Ώ

11. Return to Google Cloud console in the OAuth Client ID section, and under Authorized redirect URIs click +Add URI and paste the link copied from PROCESIO.

Document image
ο»Ώ

12. Click Create and then Done.

13. Click on the OAuth consent screen in the right side panel, and under Test users, click +Add Users and enter your email address.

If the Application is created using an enterprise email within a specific organization:

  • If the Application User Type is set to Internal, all users from that organization will have access to the App, and the Test users section will not be displayed.
  • If the Application User Type is set to External, you should add the emails that need access to the App under Test users.
Document image
ο»Ώ

13. Click on the Credentials section in the right side panel, in the OAuth 2.0 Client IDs section, click on the newly created application.

14. Copy the Client ID and Client Secret.

Document image
ο»Ώ

15. Return to the Create Credential section in PROCESIO and finish creating the credential. All the URLs needed can be found in the API Documentation of the app (Google Sheets in this case):

  • In the URL field you need to input the endpoint where the requests will be made: https://sheets.googleapis.com/v4
  • In the Scopes field input the scopes you need to use: https://www.googleapis.com/auth/spreadsheets.readonly https://www.googleapis.com/auth/spreadsheets
  • In the Client ID and Client Secret fields insert the values from the Credential created in Google Cloud. (copied at step 14)
  • In the Auth URL field you need to input the Authorization URL: https://accounts.google.com/o/oauth2/v2/auth
  • In the Token URL field you need to input the Token URL: https://oauth2.googleapis.com/token
Document image
ο»Ώ
Document image
ο»Ώ

16. Click "Save and Authorize" to generate your token.

17. If the Google app created in the Google Cloud Console is in testing (no need to publish the app), you will receive the following prompt:

If the Application is created using an enterprise email within a specific organization and with the User type set as Internal, this prompt will not be displayed.

Document image
ο»Ώ
  • Click Continue.

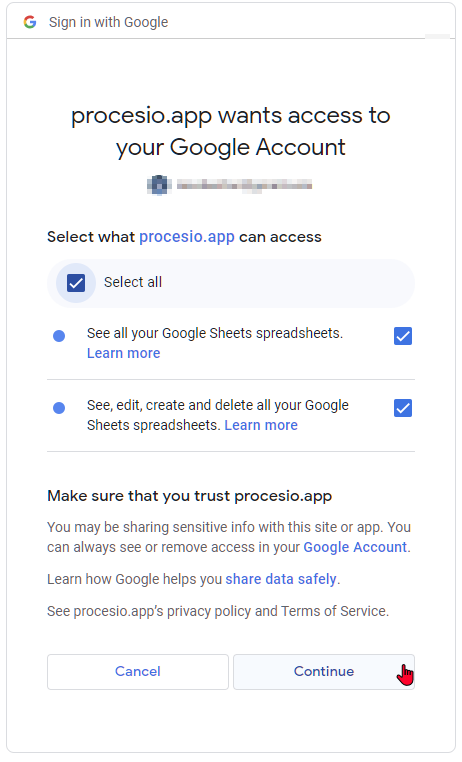

18. In the following prompt check Select all and click Continue.

Document image
ο»Ώ

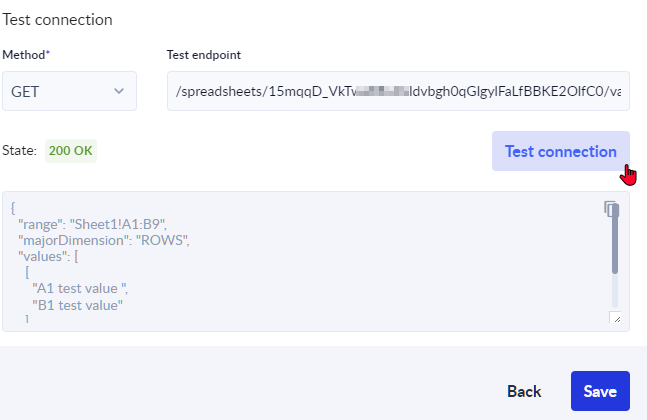

19. In the Test connection section add any GET request in order to confirm that everything was configured properly.

Endpoint: /spreadsheets/{SheetId}/values/A1:B9

  • Replace {SheetId} with your Sheet Id
Document image
ο»Ώ

20. Click Save to save the credential.

Updated 23 Aug 2023
