Run a process with files via Call API

In order to run a process that uses files as input, 3 API Calls must be set up: Publish Flow, Upload File, and Launch Flow.

Step 1: Create a process that requires a file input with a file variable called inputFile.

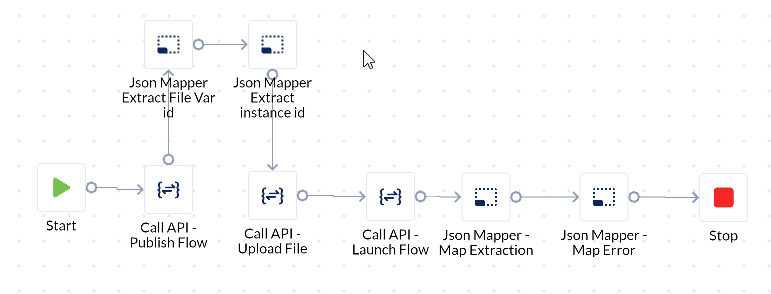

Step 2: Then create a new process that will run the first process:

Imputs & Outputs:

[I] file: A file type variable that contains the file for the procees that needs to be started.

[I] workspace id : The workspace Id of the workspace where the process that needs to be started is.

[I] inputFile : The same type of variable and name with the one from the first process.

[I] API key: The API key created in the workspace where the process that needs to be started is.

[I] flowTemplateId: A guid variable that stores the uid of the process you want to start.

[I] API key Value: The API key value created in the workspace where the process that needs to be started is.

[O] publishResultBody: Json variable that stores the body output for the Publish Flow Call API.

[O] publishStatus: String variable that stores the status output for the Publish Flow Call API.

[O] fiIeID: Guid variable that stores the result of the Json Mapper Extract File Variable ID.

[O] uploadFileStatus: String variable that stores the Upload File Call API status.

[O] uploadFileRespone: Json variable that stores the body output for the Upload File Call API.

[O] Extraction: Json variable that stores the result for the Json Mapper - Map Extraction.

[O] error: String variable that stores the result for the Json Mapper - Map Error.

Step 3: In the Automation section - API keys - create a new key /docs/overview/automation/api-keys .

Step 4: Configure the first Call API action:

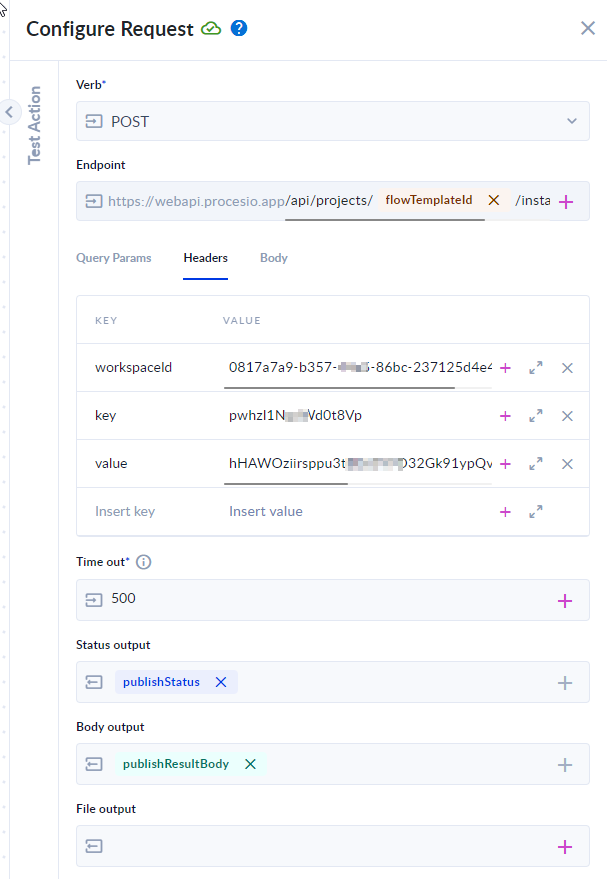

Call API - Publish Flow configuration:

Headers:

• Workspace ID of the workspace where the process that needs to be started is.
• API key and Value from the workspace where the process that needs to be started is.

Body:

In the body send the file id and name.

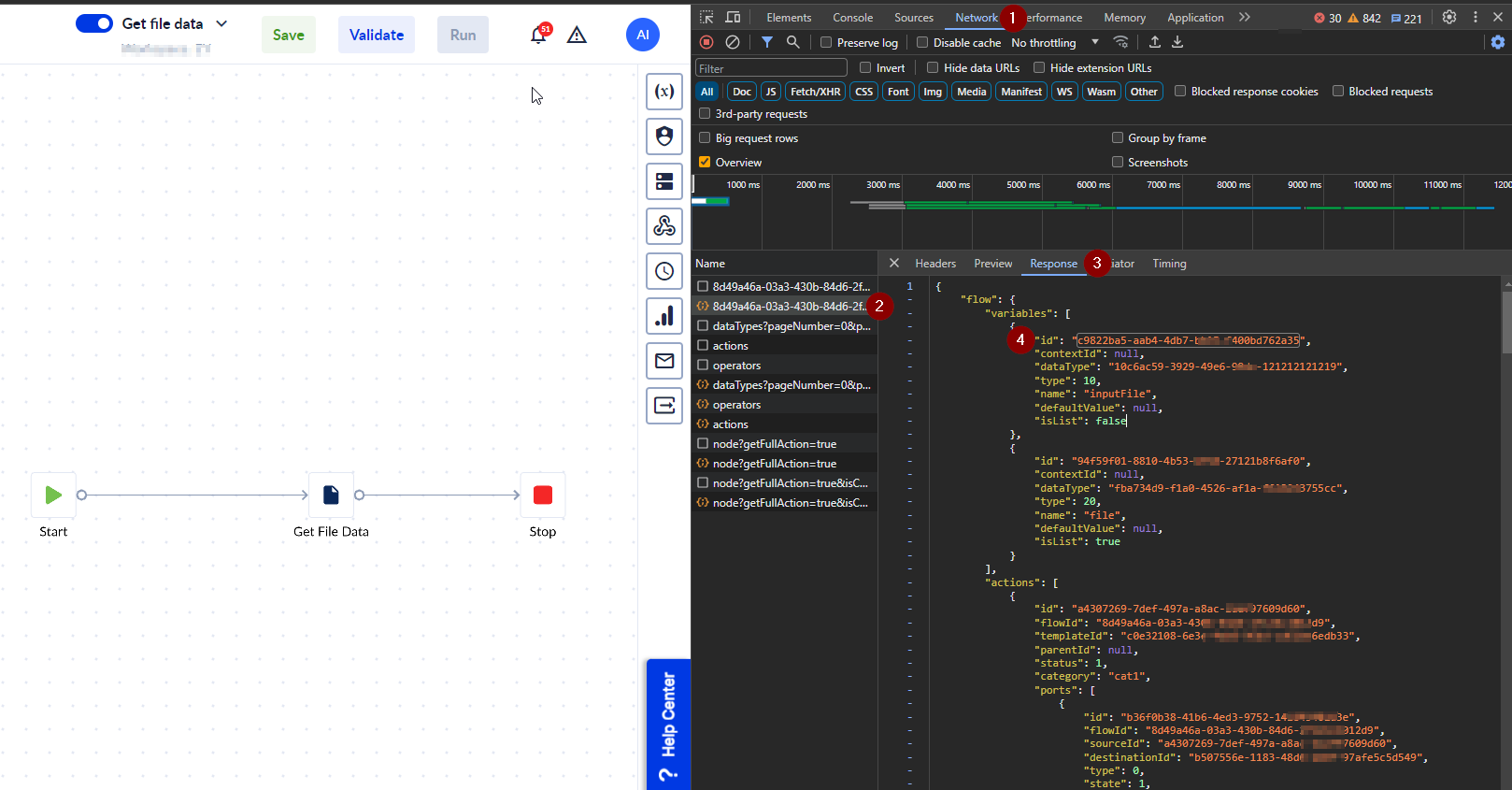

In order to get the file id:

• Open the developer tools in your browser.
• Open the project you want to run.
• Open the Networking section
• Select the first response since you opened the process.
• By name identify the file that needs to be upload and copy the id:

Step 5: Configure the Json Mapper to extract the file id.

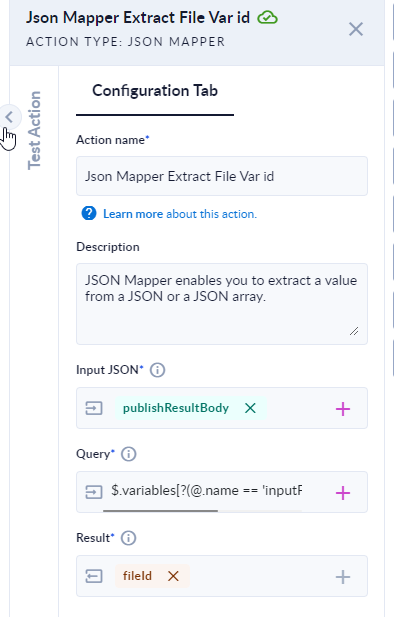

Json Mapper - Extract File Var id:

Input JSON: publishResultBody

Query: $.variables[?(@.name == 'inputFile')].defaultValue.id

Result: fileID

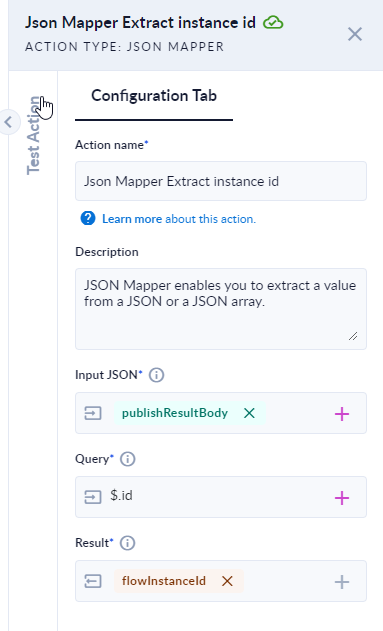

Json Mapper - Extract File instance id:

Input JSON: publishResultBody

Query: $.id

Result: flowInstanceId

Step 6: Configure the second Call API action.

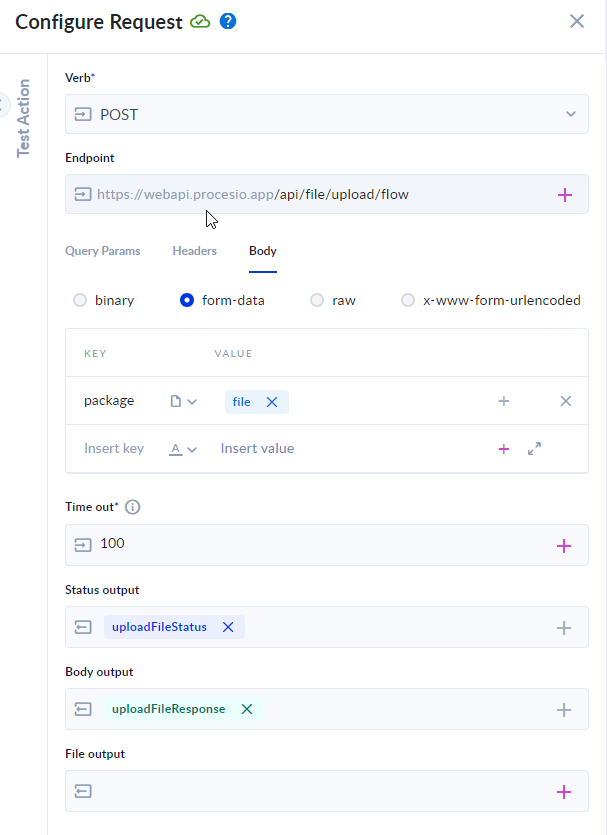

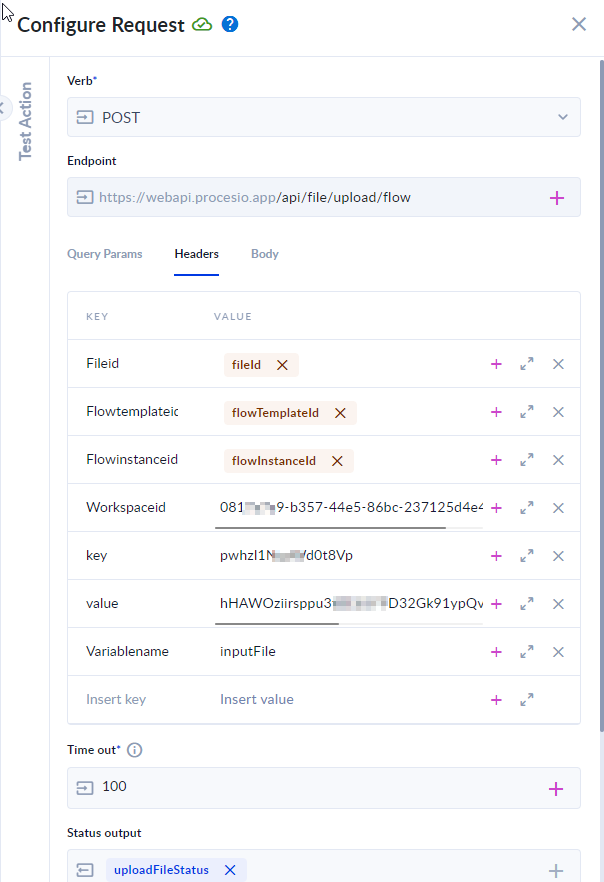

Call API - Upload File:

A POST on https://webapi.procesio.app/api/file/upload/flow

Headers:

Body:

form-data:

Key: package Value

Value: file (the file type variable configured for the process that needs to be started.

Step 7: Configure the third Call API action.

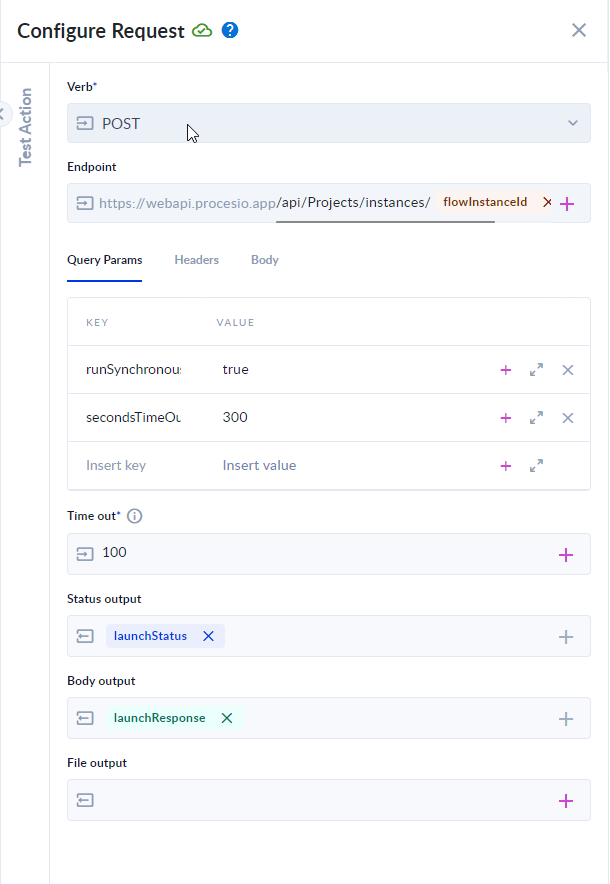

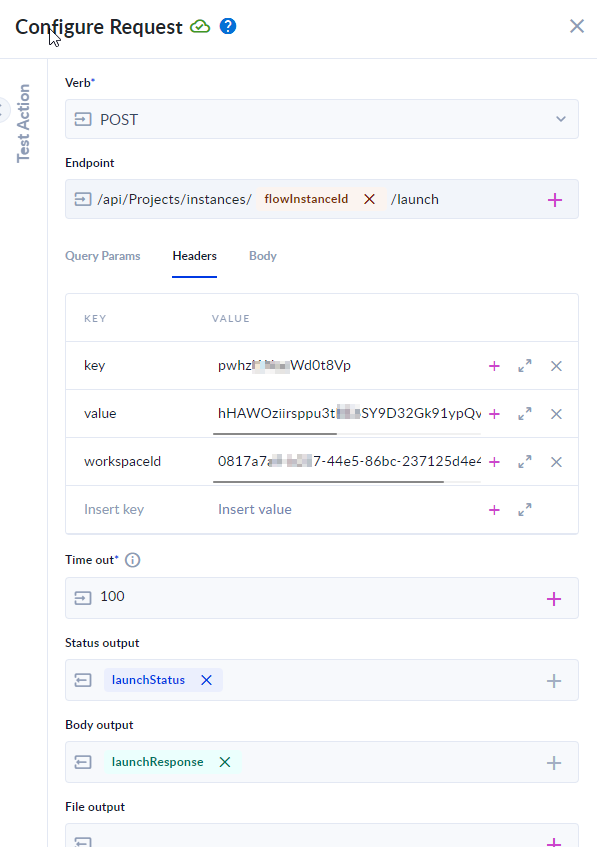

Call API - Launch Flow:

Query Params:

runSynchronous is required only if a response from the process is expected.

Headers:

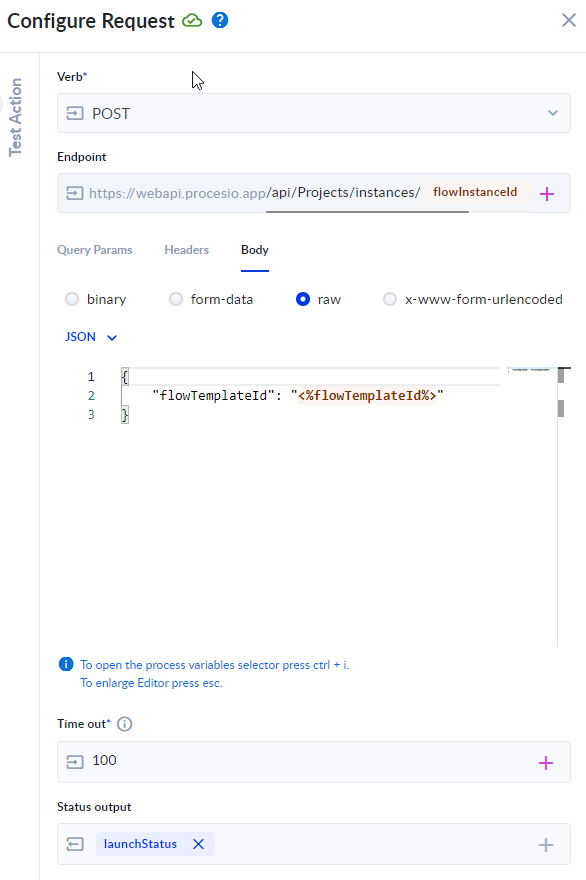

Body:

{ "flowTemplateId": "<%flowTemplateId%>" }

Step 8: Configure the Json Mapper to get a variable value from the process.

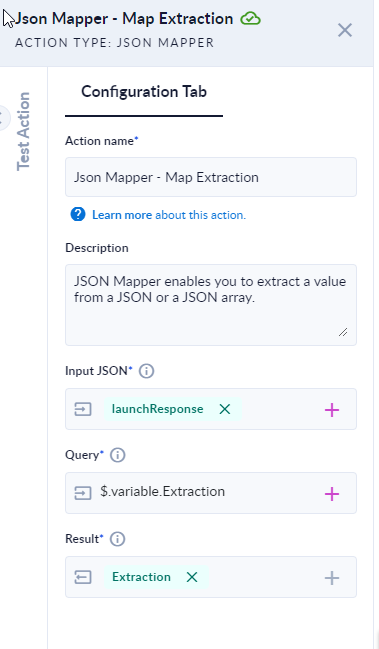

Json Mapper - Map Extraction:

Input JSON: launchResponse

Query: $.variable.Extraction

Result: Extraction

Step 9: Configure the Json Mapper to get the error variable from the process.

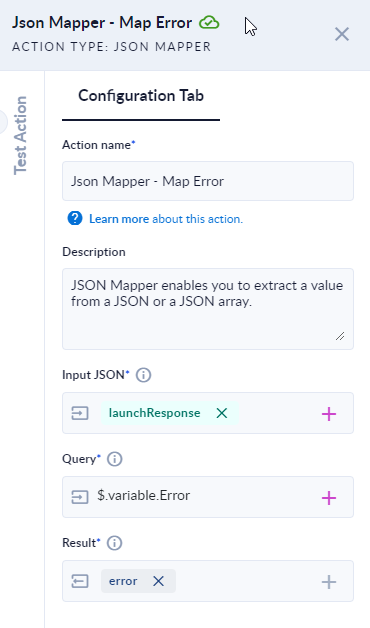

Json Mapper - Map Error:

Input Json: launchResponse

Qury: $.variable.Error

Result : error
