Our REST APIs allow you to integrate with PROCESIO from any other application. We expose 2 APIs: Proxy API and Web API. Use the Proxy API for connecting to the Authentication Service, and the Web API to perform operations on your application, such as running a process, or getting a data type configuration.

Proxy API

Use the Proxy API to reach the Authentication Service. The Authentication Service exposes methods such as authenticate, refreshToken, password change, and password update.

In order to be able to perform any operation on the PROCESIO platform through the Web API, you need to first get an access token from the Proxy API. In order to obtain an access token you can use the POST /api/Authentication method.

The POST /api/Authentication method requires the following parameters:

realm: your tenant name (all users are added to "procesio01")
grant_type: password
username: your user name
password: your user’s password
client_id: procesio-ui
client_secret: (can be left empty)

If the request is successful, you will receive an access token in the response which you will be able to use to access the Web API services.

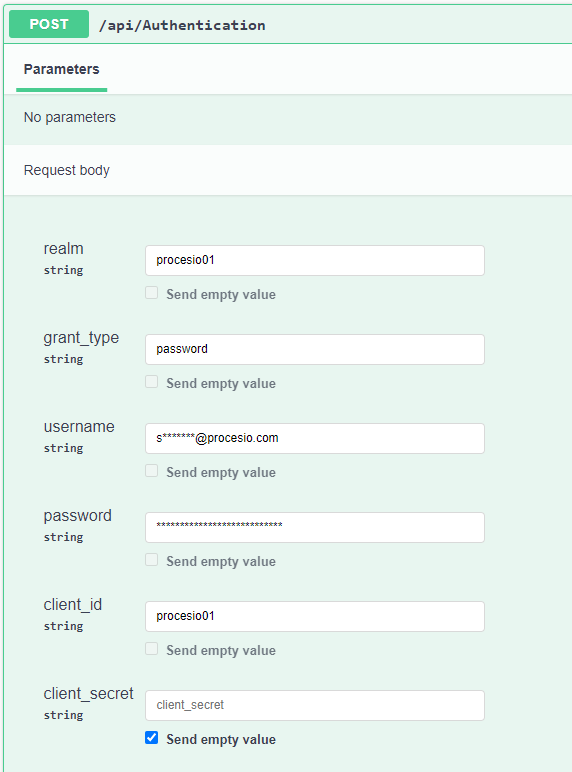

Here’s how the request would look like testing through Swagger:

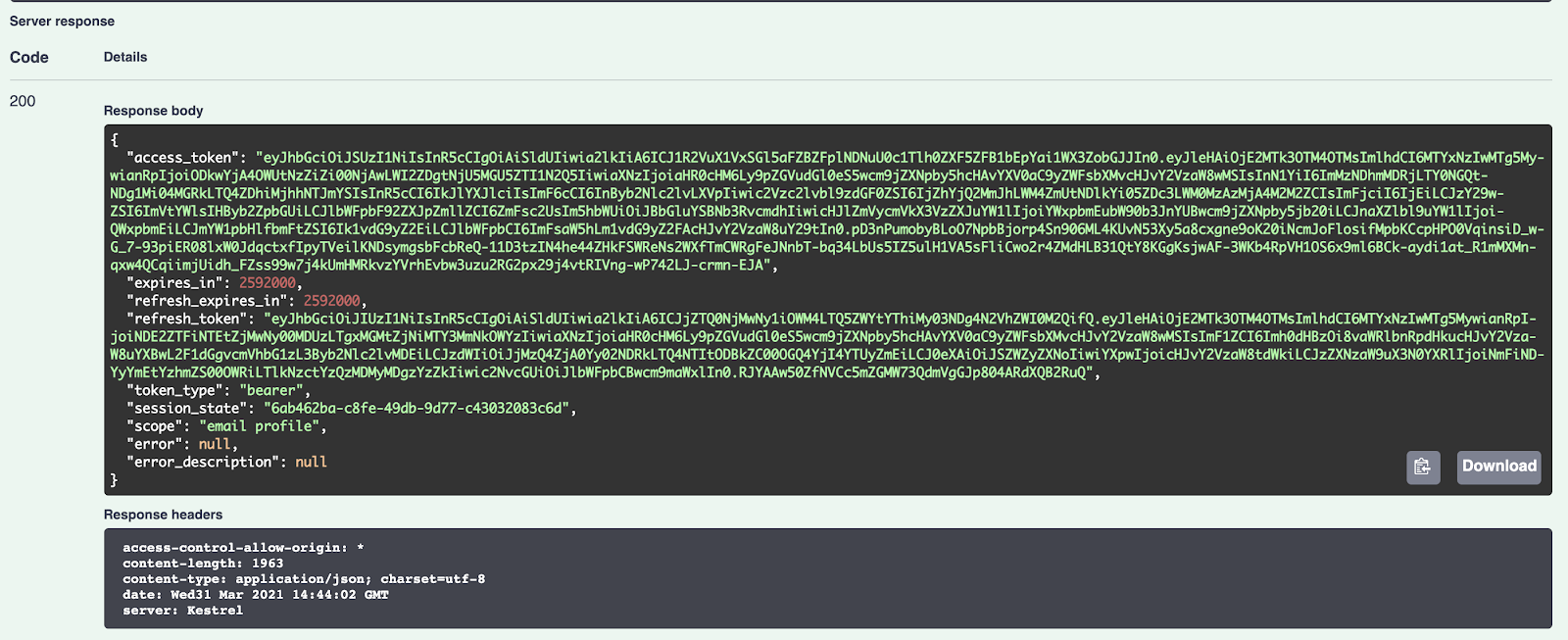

And if successful, the response in Swagger will look like this:

For a full list of methods, check Proxy API.

Web API

Use the Web API to interact with the PROCESIO platform. To be able to send requests to the Web API, you need to be authorized with the access token received from the Proxy API (see the previous chapter regarding the Proxy API). The Authorize button can be found in the upper right corner.

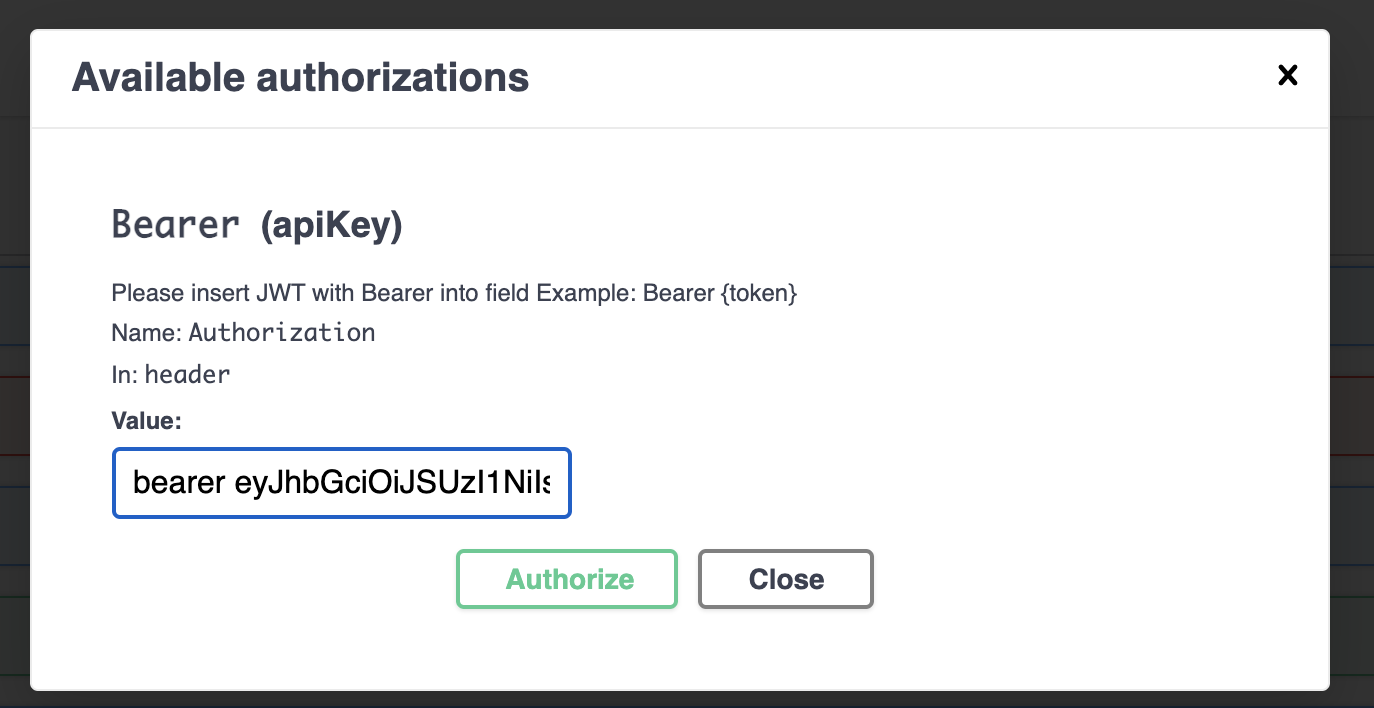

Bearer Authentication

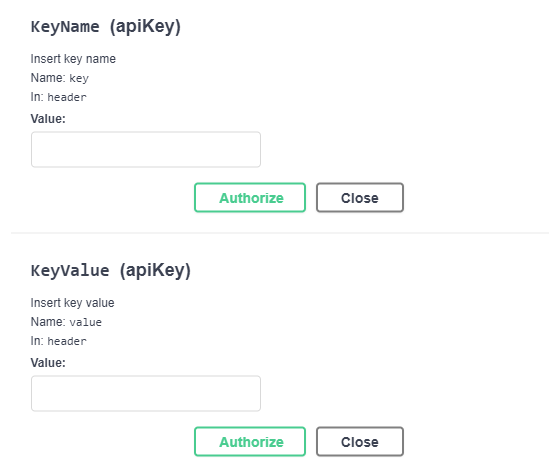

API Key Authentication

How to run a process from an external application?

Prerequisites

To run the process using a API Key we will require:

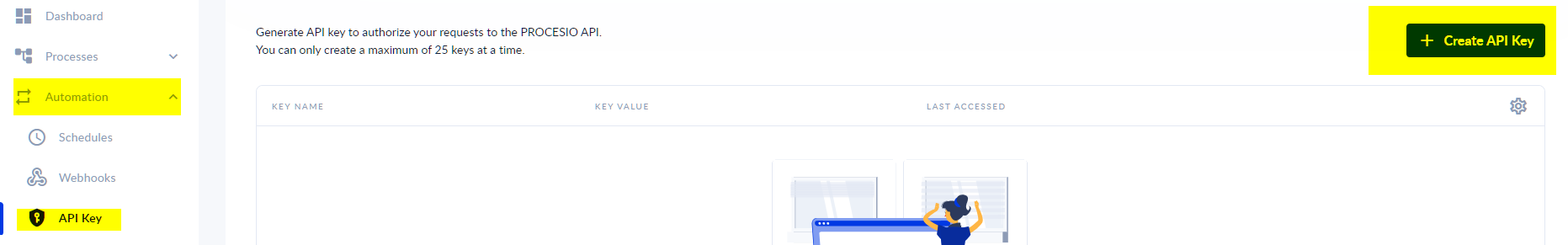

Generate a API Key in PROCESIO.

PROCESIO API endpoints can be found here. Additionally we also provide Swagger for our Web API endpoints which can be tested here.
Postman for sending the request.

Postman

Configure the request:

1. Select Post Method mention the base URL and the endpoint

Base URL: https://webApi.procesio.app
Endpoint: /api/Projects/e6bb2d64-2f96-4e43-a84b-b25a08c0764d/run (includes the Process ID)

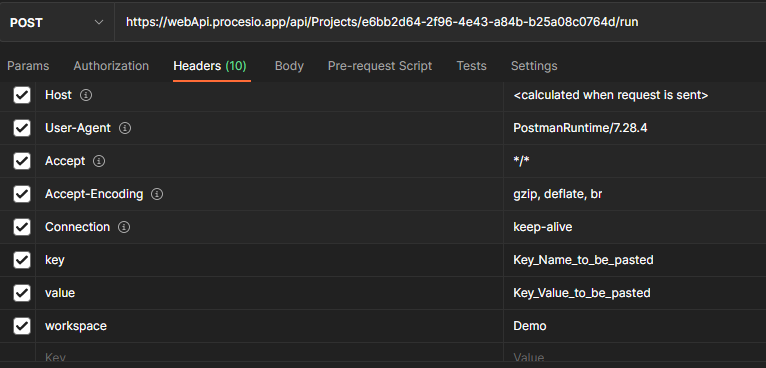

2. In Postman from Headers include:

Headers	Value
key	API key name
value	API key value
workspaceId	workspace Id

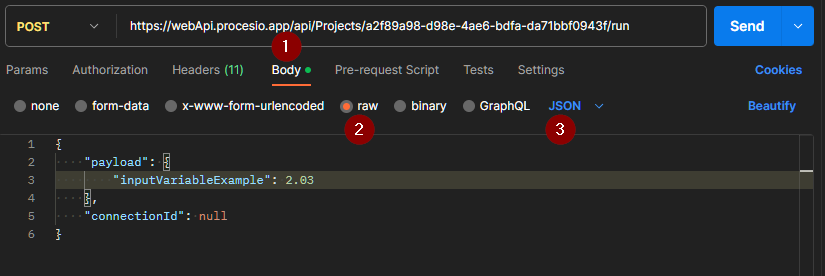

3. In Postman from Body, raw, include:

{ "payload": {}, "connectionId": null }

In the payload add the input variables for the process as displayed in the screenshot below

4. Select JSON

5. From Postman hit the Send button in order to trigger the process for which you configured the request.

Once authorized to the WebAPI, you have access to the following services:

Service	Method type	Method name	Description
Actions	GET	/api/Actions/folders/{id}	Returns the full path to the process.
Actions	DELETE	/api/Actions/folders/{id}	Deletes the folder containing the process with all its content.
Actions	GET	/api/Actions/folders	Returns directory tree of the workspace.
Actions	POST	/api/Actions/folders	Add a new folder in your workspace.
Actions	PATCH	/api/Actions/folders/rename	Renames node inside your workspace.
Actions	GET	/api/Actions/templates/{id}	Returns information about the template.
Actions	DELETE	/api/Actions/templates/{id}	Deletes the specified template.
Actions	POST	/api/Actions/templates	Creates a new template in your workspace.
Actions	GET	/api/Actions/{id}	Returns information about the action.
Actions	DELETE	/api/Actions/{id}	Deletes the specified action.
Actions	GET	/api/Actions	Returns list of actions.
Actions	POST	/api/Actions	Add a new action in your workspace.
Actions	GET	/api/Actions/category/{category}	Returns information about the category.
Actions	POST	/api/Actions/test	Creates a new action category.
Actions	GET	/api/Actions/test/{id}	Returns information about the action in the specified category.
Actions	GET	/api/Actions/node	Returns information about the node content.
ApiKey	GET	/api/ApiKey	Returns the api key.
ApiKey	POST	/api/ApiKey	Use api key on workspace.
ApiKey	DELETE	/api/ApiKey	Delete api key.
ApiKey	DELETE	/api/ApiKey/{id}	Delete project.
Credentials	GET	/api/Credentials/types	Returns the credential configuration types (REST API, Email Server) with their associated fields (URL, authentication type,..).
Credentials	POST	/api/Credentials/types	Creates a new credential configuration type.
Credentials	GET	/api/Credentials/types/{id}	Returns the credential fields necessary for a given type.
Credentials	POST	/api/Credentials/test	Tests if a credential configuration is valid.
Credentials	GET	/api/Credentials	Returns a list of existing credential configurations.
Credentials	POST	/api/Credentials	Creates a new credential configuration.
Credentials	PUT	/api/Credentials	Modifies an existing credential configuration.
Credentials	GET	/api/Credentials/list/{templateId}	Returns information about the template.
Credentials	GET	/api/Credentials/{id}	Returns the credential configuration details for a configuration ID.
Credentials	DELETE	/api/Credentials/{id}	Deletes a credential configuration based on a configuration ID.
Credentials	GET	/api/Credentials/verbs/{templateId}	Returns information about the template.
Credentials	POST	/api/Credentials/upload/{credentialsId}	Creates a new credential.
Credentials	POST	/api/Credentials/upload/test	Creates a new category of credentials.
DataTypes	POST	/api/DataTypes	Creates a new data type.
DataTypes	PUT	/api/DataTypes	Modifies an existing data type.
DataTypes	GET	/api/DataTypes	Returns a list of available data types in the tenant.
DataTypes	GET	/api/DataTypes/{id}	Returns the attributes of a data type for a data type id.
DataTypes	DELETE	/api/DataTypes/{id}	Deletes a data type based on the data type ID.
DataTypes	GET	/api/DataTypes/{value}	Returns the properties of a data type based on the data type name.
DataTypes	GET	/api/DataTypes/primary	Returns a list of primitive data types available on the platform.
DataTypes	GET	/api/DataTypes/primary/count	Returns the number of primitive data types available on the platform.
File	POST	/api/File/upload/flow	Upload flow.
File	POST	/api/File/upload/testAction	Upload action.
File	GET	/api/File/download	Download file.
File	POST	/api/File/upload/schedule	Upload flow.
Projects	POST	/api/Projects	Create a process.
Projects	PUT	/api/Projects	Modify a process.
Projects	GET	/api/Projects	Returns a list of processes.
Projects	POST	/api/Projects/validate	Validates a process.
Projects	DELETE	/api/Projects/{id}	Deletes a process based on the ID.
Projects	GET	/api/Projects/{id}	Returns the process configurations based on a process ID.
Projects	GET	/api/Projects/{id}/instances/publish	Copies a process and creates an instance which is ready to be launched. After publishing the process, use the launch method to execute the instance using the ID returned by this method. Alternatively use the run method to execute a process.
Projects	GET	/api/Projects/{id}/instances	Returns a list of process instances for a given process ID.
Projects	GET	/api/Projects/instances/{id}/status	Returns the status of a process instance.
Projects	GET	/api/Projects/instances/{id}/launch	Executes a process instance by instance ID. Note that the process instance is created with the publish method.
Projects	POST	/api/Projects/{id}/run	Trigger a process using the process ID.
Projects	GET	/api/Projects/{id}/payload	Returns the payload of specified process.
Projects	GET	/api/Projects/{id}/used	Returns the used resources by the process.
Projects	PATCH	/api/Projects/{id}/toggle-activation	Change the state of the project.
Resources	GET	/api/Resources/used	Returns the list of existing resources on the account.
Resources	GET	/api/Resources/analytics/processes	Returns the analytics for all processes.
Resources	GET	/api/Resources/analytics/processes/{id}/details	Returns info on the process.
Resources	GET	/api/Resources/analytics/instances/{id}/details	Returns the analytics of specific instance.
Resources	GET	/api/Resources/analytics/users	Returns the user/account analytics information.
Schedules	GET	/api/Schedules	Returns a list of schedules.
Schedules	POST	/api/Schedules	Create a schedule.
Schedules	PUT	/api/Schedules	Modify a schedule.
Schedules	GET	/api/Schedules/{scheduleId}	Returns the schedule configurations based on a schedule ID.
Schedules	DELETE	/api/Schedules/{scheduleId}	Deletes a process based on the ID.
Schedules	POST	/api/Schedules/{scheduleId}/duplicate	Creates a copy of a schedule based on the ID.
Schedules	Patch	/api/Schedules/{scheduleId}/status	Returns the schedule status based on the ID.
Status	GET	/api/Status	Returns the platform status.
Version	GET	/gui/Version
Version	POST	/gui/Version
