Overview

You can run your script and interact with Form variables using JavaScript.

📄 Form Variable

The Form Variable Object ProcesioForm describes a form, its related flow, instance, variables and all configured fields.

{ "data": { ... }, "variables": { ... } }

data – Contains information about the current form fields, instance, flow and form attributes.
variables – Holds additional variables related to the form (e.g., uploaded files).

ProcesioForm.data.fields

Defines all form elements. Each field has configuration such as label, visibility, type, and value, etc.

Check corresponding element's page for documentation:

Fields
- [Text Input](<../spaces/SPACES/Overview/Text Input.md#om2kw>)
- [Number Input](<../spaces/SPACES/Overview/Number Input.md>)
- [Date-time Input](<../spaces/SPACES/Overview/Date-time Input.md>)
- Textarea
- [Select Input](<../spaces/SPACES/Overview/Select Input.md>)
- Checkbox
- [Radio Button](<../spaces/SPACES/Overview/Radio Button.md>)
- Button
- Dropdown
- [File Upload](<../spaces/SPACES/Overview/File Upload.md>)
- [Signature Pad](<../spaces/SPACES/Overview/Signature Pad.md>)
- Approval
- [Dynamic Assignee across forms](<../spaces/SPACES/Overview/Dynamic Assignee across forms.md>)
Structure
- Section
- List
- Columns
- Stepper
- Divider
- Tabs
- [Side Panel](<../spaces/SPACES/Overview/Side Panel.md>)
- Heading
- Paragraph
- Image
- [File Viewer](<../spaces/SPACES/Overview/File Viewer.md>)
- Icon
- Chat
Table
- [Data Table](<../spaces/SPACES/Overview/Data Table.md>)
- [Static Table Row](<../spaces/SPACES/Overview/Static Table Row.md>)
- [Dynamic Table Row](<../spaces/SPACES/Overview/Dynamic Table Row.md>)

ProcesioForm.data

Form data and attributes.

Name	Description	Type
`instance`	Form instance (check details below).
`flow`	Form flow execution (check details below).
`variables`	Extra form variables (check details below).

ProcesioForm.data.instance

Information about the form instance and users.

Name	Description	Type
`id`	Unique identifier of the form instance.	String
`workspaceId`	Workspace ID where the instance belongs (if any).	String \| null
`submitter`	Info about the user who submitted the form.	Object
`submitter.id`	Submitter user's unique ID.	String \| null
`submitter.name`	Submitter’s name.	String \| null
`submitter.email`	Submitter’s email.	String \| null
`currentUser`	Info about the currently logged-in user.	Object
`currentUser.id`	Current user’s unique ID.	String \| null
`currentUser.name`	Current user’s name.	String \| null
`currentUser.email`	Current user’s email.	String \| null

ProcesioForm.data.flow

Information about the flow execution connected to this form.

Name	Description	Type	Values
`id`	Flow ID.	String \| null
`startDate`	When the flow started.	String \| null
`endDate`	When the flow ended.	String \| null
`status`	Current flow status.	String \| null	`in-progress`, `completed`, `approved`, `rejected`
`statusEnum`	Possible status values (enum).	Object

ProcesioForm.variables

Holds extra variables created on the form.

Getting started

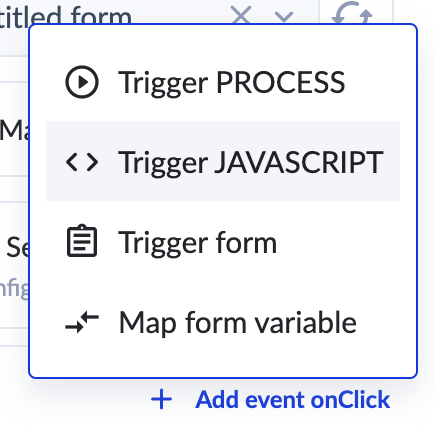

Choose Trigger JavaScript event

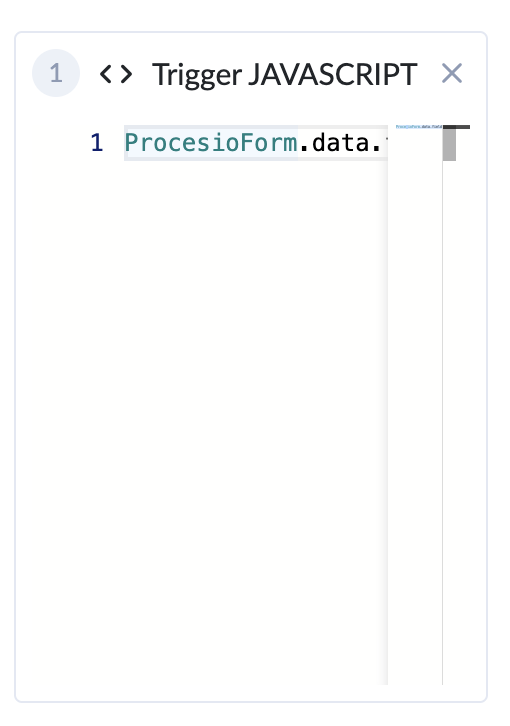

Write your script in the editor (you can enlarge the editor pressing Esc button)

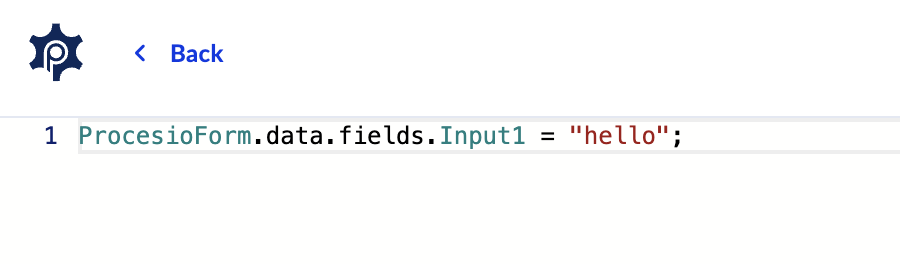

Enlarged code editor

Example

This script allows to access to form data. Example of usage:

1. Get field value const value = ProcesioForm.data.fields.input1.value;

2. Set field value ProcesioForm.data.fields.input1.value = "value";

3. Set field readonly state ProcesioForm.data.fields.input1.readonly = true;

where input1 is element name.

4. Get form variable value const value = ProcesioForm.variables.var1;

5. Set form variable value ProcesioForm.variables.var1 = "value"

where var1 is form variable name.

Troubleshooting

If you encounter issues with your form events:

Check browser console for error messages and details.
Verify JavaScript and form variables syntax.

For support, please join our Discord community for further assistance and support.
