Sort Data Model

Overview

The Sort Data Model action sorts a data model list based on multiple criteria.

Parameters

Inputs

• list to be sorted (list<object>): This is both input and output. It will return the updated list in the same variable.

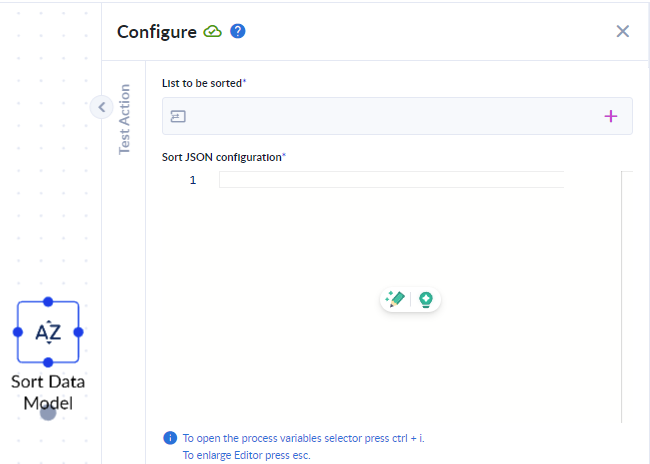

• Sort JSON Configuration: This should be a "Monaco editor", allowing JSON.

Outputs

• list to be sorted (list<object>): This is both input and output. It will return the updated list in the same variable.

Configuration Details

The Sort JSON Configuration should have the following structure:

{
  "IdField":"id",
  "Sort":[
    {"Field":"path.Field1","OrderType":"Asc"},
    {"Field":"path.Field2","OrderType":"Desc"}
  ]
}

The list will be sorted based on the cumulative rules described above.

IdField

• This represents a field within the data structure that represents a unique value throughout the entire data set (e.g. the row identifier)

Sort

• The Sort defines the sorting criteria list where you can sort by multiple fields.
• Field: This specifies the field in the data model to sort by. For example, "path.Field1" refers to a field named "Field1" within an object located at the "path" in the data model.
• OrderType: This determines the sorting order for the specified field. It can have two values:
  • Asc: Sorts the field in ascending order (from lowest to highest).
  • Desc: Sorts the field in descending order (from highest to lowest).
